Payment & Shipping Terms:
|Product Name:||5 PET Button Sound Module||Dimension:||95*34.5*5.5mm|
|Application:||With Custom Sound||Plastic Housing:||Our Mold, Any Pantone Color|
|Materials:||ABS + PET||Power:||AG10 * 3PCS|
toy voice box,
recordable sound chips for toys,

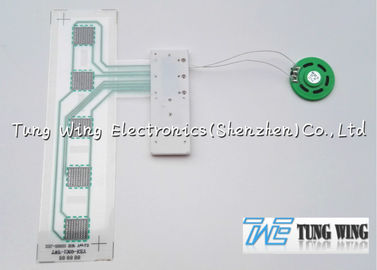

5 PET Button Toy Sound Module
5 PET Button Toy Sound Module For Children Sound Book , Music Carpet
Sound Module Specification:
1. Module size: 95*34.5*5.5mm (this is our mold ,we also have a similar exsiting mold with this one)
2. PET button : the quantity of the buttons & the whole layout of the buttons can be changed according to your requirements.
3. Batteries:3PCS *AG10 batteries, 4.5V operating voltage; Battery life cycle: 500~560 cycles, Storage time: 2-3 years.
4. With standard sound or custom voice, such as the animals sound, transportation sound, melody
voice, human talking voice
5. Up to Volume standards for children's books: 75-85 dB
6. 40 mm speaker *1pc (the speaker in the outside of the plastic housing)
7.Operating:Pressing the square button, the sound is activated.
7.All the materials are non-toxic and environmentally-friendly, and can pass CE/ROHS/EMC/EN71-1/2/3.Besides we could provide all the raw materials SGS testing reports.
8. Sample ready time: 7 working days after received the custom sound
Note:For this module , the layout of the PET button can be changed according to your requirements.
More detailed information about our exsiting molds for 5 Button PET sound module
|1.Item||5 PET Button Sound Module|
|2.Material||ABS + PET|
AG 10 * 3 PCS
1pcs 157gsm art paper,4C
1pc 40mm speaker,8Ω
|4.IC duration||3~5seconds per button,20seconds in total.(this can be changed according to your sound files)|
|5.Operating||Pressing the square button, the sound is activated.|
|6.Payment term||T/T, 30% deposit +70% balance money paid before the shipment.|
|7.Production time||30-45days after the sample approved(the first 10-15days for booking materials ,the next 10-15days for production,the final 10-15days for ready for shipment )|
|8.Package||Customized package,according to your requirements.|
1.Quote in 2 working days when received the enquiry
2.Exellent design as customer's requirment
3.For the sample charge, it will be returned back to you when playing an order.
4.OEM Manufacturer,OEM design & custom shape & custom sound are welcome.
5.Profession technology team to solve all skillful problems
6.Strict and carefully quality checking before shipping
7.If any quality problem please don't hesitate to call us at (86)0755-28791270
OEM & ODM SERVICES (Custom shape & Custom sound)
Tung Wing Electronics(Shenzhen)Co.,Ltd established in 1987,located in Shenzhen, China. Our Major products are all kinds of sound module, LED/fiber optic module,plastic electronic products, electronic toys and gifts etc.. We provide OEM/ODM service to every customer upon our powerful development capabilities, first-class service, strict product quality assurance and punctual delivery.In addition,we have scientific organizational company structure and management system.Professional mold team to fulfill the mold producton,and injection department to produce the plastic housing,and also the Bonding &SMD department,Slik screen department ,with 6 production line’s skilled workers to implement the assembly production works,finally the strict QC & QA testing stardards.
