6 Button Sound Book Module AG10 Battery For Children Learning

6 Button Sound Book Module AG10 Battery For Children Learning

MOQ: 3000pcs
Price: USD0.99 ~ USD1.29
Standard Packaging: poly-bag+carton
Delivery Period: 35-45 days
Payment Method: T/T, L/C
Supply Capacity: 5,000pcs/day/production line
Detail Information
Place of Origin
Donguan,China
Brand Name
OEM/ODM ,with customized design
Certification
ICTI/DISNEY/WCA/CE/EMC/EN71/2/3/ROHS
Model Number
TD-372
Type:
Speaker,Sound Module For Childrens Education Books
Material:
ABS,eco-friendly Or Common
Battery:
AG10,Button Cell
Size:
Customized
Application:
Plush Toys
Function:
Pre-recorded
Minimum Order Quantity:
3000pcs
Price:
USD0.99 ~ USD1.29
Packaging Details:
poly-bag+carton
Delivery Time:
35-45 days
Payment Terms:
T/T, L/C
Supply Ability:
5,000pcs/day/production line
High Light:

Children Learning Sound Book Module

,

6 Button Sound Book Module

,

AG10 Battery Child Audio Books

Product Description



6 Button Multi Sound Panels For Children Talking Book ,Sound Board Book, Baby Sound Book



Specification:



Item name Custom mold 6 button multi sound panels
Size 185*45*14.5mm
Design customized design,we also have simliar molds like this one
IC duration 15seconds per button,about 80seconds in total .(Customer's sounds files)
Sticker 157gsm art paper (also customer provided stiker file,AI format)
Testing CE/ROHS/EMC/EN71-1/2/3
Speaker 8Ohm 0.25W, Dia.29mm
Battery AG10*3pcs
Function when pressing the stikcer's button down, it comes up with the sounds.
Application Children talking book, baby sound book, play a sound book
Production time 30-45days after the sample approved(the first 10-15days for booking materials ,the next 10-15days for production,the final 10-15days for ready for shipment )
Payment term T/T ,30% deposit + 70% balance money paid before delivery



1.Book Materials:



the top cover :170*188mm, the bottom cover:215*188mm



5 inner spread + Cover , 4C+4C printing ,2 layers of 350GSM gray board /CCNB /C1S



Finishing: UV varnishing and glossy lamination



With special die cutting


2.Sound Module:

1. Module size: 188*45*18mm (this is our customer's mold ,we also have a similar exsiting mold with this one,please see the blew picture)



2. Sticker: 157GSM art paper *1pc



3. Batteries: 3PCS *AG10 batteries, 4.5V operating voltage; Battery life cycle: 500~560 cycles, Storage time: 2-3 years.



4. With standard sound or custom voice, such as the animals sound, transportation sound, melody voice, human talking voice



5. Up to Volume standards for children's books: 75-85 dB



6. 29mm speaker *1pc



7.All the materials are nontoxic and environmentally friendly, and can pass CE/ROHS/EMC/EN71Besides we could provide all the raw materials SGS testing reports.



8. Sample ready time: 7 working days after received the custom sound & sticker

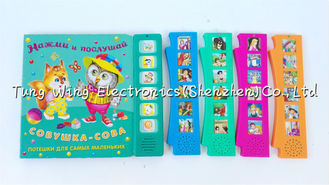

Picture show



Voice recordable 6 Button Animal Sounds Book with Multi Sound Panels 0Voice recordable 6 Button Animal Sounds Book with Multi Sound Panels 1Voice recordable 6 Button Animal Sounds Book with Multi Sound Panels 2



More detailed information about our exsiting molds for 6 button module



1.Item 6 button module
2.Material ABS + art paper
3.Specification

different size

AG 10 *3PCS

1pcs 157gsm art paper,4C

1pc 27mm speaker,8Ω

4.IC duration 3~5seconds per button,20seconds in total.(this can be changed according to your sound files)
5.Operating Each button stands for one sound.
6.Payment term T/T, 30% deposit +70% balance money paid before the shipment.
7.Production time 30-45days after the sample approved(the first 10-15days for booking materials ,the next 10-15days for production,the final 10-15days for ready for shipment )
8.Package Customized package,according to your requirements.





OEM & ODM SERVICES (Custom shape & Custom sound)



Tung Wing Electronics(Shenzhen)Co.,Ltd established in 1987,located in Shenzhen, China. Our Major products are all kinds of sound module, LED/fiber optic module,plastic electronic products, electronic toys and gifts etc.. We provide OEM/ODM service to every customer upon our powerful development capabilities, first-class service, strict product quality assurance and punctual delivery.In addition,we have scientific organizational company structure and management system.Professional mold team to fulfill the mold producton,and injection department to produce the plastic housing,and also the Bonding &SMD department,Slik screen department ,with 6 production line’s skilled workers to implement the assembly production works,finally the strict QC & QA testing stardards.
