Product Details:
Payment & Shipping Terms:
|
| Type: | Mini Recordable Sound Modules | Battery: | 3AA |
|---|---|---|---|
| Function: | Record Voice,Playing Sound | Application: | Talking Product |
| Certification: | EN71,CE,ROHS,FCC,CE ROHS FCC | Size: | Customized |
| Material: | PCB+battery+speaker,ecofriendly Push Button Sound Modules For Toys | Product Name: | Sound Module |
| Components: | Speaker,PCB,battery,Vioce Pre-recorded IC,IC | Music Format: | MP3/WAV,WAV MP3 MADI,mp3 Or Wave File Format |
| Speaker: | 29mm | Use For: | Music Box |
| High Light: | FCC Push Button Sound Module,3AA Battery Push Button Sound Module,Nursery Rhyme Recordable Sound Chip |
||
6 Button and 2 LED Module For Intellectual Baby Sound Book, Play A Sound Book,Funny Nursery Rhyme Book
Specifications
(1)Book:
Materials: 300*300mm,7 inner spreads, 4C+4C printing ,350gsm~400gsm CCNB,with UV varnishing and glossy lamination
Cover : 300*300mm,300gsm art paper + 2mm grey board + 300gsm art paper,4C+0 ,with UV varnishing and glossy lamination
(2) Sound Module:
1. Module size: 175*87*15mm (our existing mold, custom shape also welcome)
2. Sticker: 157GSM art paper *4pc
3.With red Led *2pcs (installed onto the semi-transparent button)
4.2 way switch (On/Off button)
5. Batteries: AAA*2PCS( Battery can be replaceable.)
6. With standard sound or custom voice, such as the nursery rhyme,animals sound, transportation sound, melody voice, human talking voice
7.Up to Volume standards for children's books: 75-85 dB
8.28mm metal speaker *1pc
9.All the materials are non-toxic and environmentally-friendly, and can pass CE/ROHS/EMC/EN71-3.Besides we could provide all the raw materials SGS testing reports.
10. Sample ready time: 7~10 working days after received the custom sound & sticker
Our Services
1.Quote in 2 working days when received the enquiry
2.Exellent design as customer's requirment
3.For the sample charge, it will be returned back to you when playing an order.
4.OEM Manufacturer,OEM design & custom shape & custom sound are welcome.
5.Profession technology team to solve all skillful problems
6.Strict and carefully quality checking before shipping
7.If any quality problem please don't hesitate to call us at (86)0755-28791270
| 1.Item | 6 button + 2 LED Module |
| 2.Materials | ABS + art paper 4C |
| 3.Specification |
Plastic moudule size: 175*87*15mm AAA*2PCS( Battery can be replaceable.) Two way switch / On off button 1pc 157g art paper,4C 1pc 28mm speaker,8Ω |
| 4.IC duration | about 100 seconds sound intotal ( the button number & layout can be changed according to your requirements.) |
| 5.Operating | The middle six button ,each button with a sound.And the left and right round two button, when pressed them down, it flashing red light and also the sound. |
| 6.Payment term |
T/T 30% deposite and 70% balanced Paid before shipment |
| 7.Production time | 30-45days after the sample approved(the first 10-15days for booking materials ,the next 10-15days for production,the final 10-15days for ready for shipment ) |
| 8.Package | Customized package,according to your requirements. |

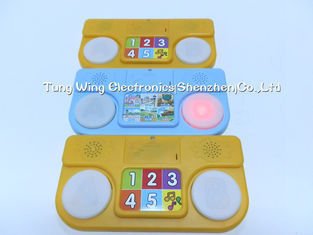

Pictures Show
