Product Details:
Payment & Shipping Terms:
|
| Type: | Speaker | Battery: | 3pcs*AG10 |
|---|---|---|---|
| Function: | Playing Sound | Application: | Talking Product |
| Certification: | EN71,CE,ROHS,FCC,CE ROHS FCC | Size: | Customized |
| Material: | ABS,PCB+battery+speaker | Product Name: | Sound Module |
| Speaker: | 29mm | Components: | Speaker,PCB,battery,IC |
| Use For: | Music Box,toys | Music Format: | MP3/WAV |
| Logo: | Customized | Switch: | Press,Pressing Button |
| Name: | Sound Module | Sample Time: | 5-7days |
| Dissipation Power: | 0.25w-0.5w | Playing Time: | 1~300 Seconds |
| High Light: | Wave Shaped Push Button Sound Module,Infant Kids Push Button Sound Module,EN71 ABS Sound Chip Module |
||

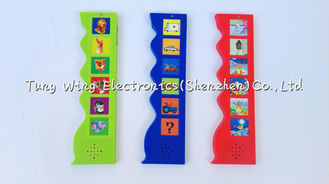

Button Multi Sound Panels For Children Talking Book ,Sound Board Book, Baby Sound Book
Specification:
1.Book Materials:
the top cover :170*188mm, the bottom cover:215*188mm
5 inner spread + Cover , 4C+4C printing ,2 layers of 350GSM gray board /CCNB /C1S
Finishing: UV varnishing and glossy lamination
With special die cutting
2.Sound Module:
1. Module size: 188*45*18mm (this is our customer's mold ,we also have a similar exsiting mold with this one,please see the blew picture)
2. Sticker: 157GSM art paper *1pc
3. Batteries: 3PCS *AG10 batteries, 4.5V operating voltage; Battery life cycle: 500~560 cycles, Storage time: 2-3 years.
4. With standard sound or custom voice, such as the animals sound, transportation sound, melody voice, human talking voice
5. Up to Volume standards for children's books: 75-85 dB
6. 29mm speaker *1pc
7.All the materials are nontoxic and environmentally friendly, and can pass CE/ROHS/EMC/EN71Besides we could provide all the raw materials SGS testing reports.
8. Sample ready time: 7 working days after received the custom sound & sticker
| Item name | 6 button multi sound panels |
| Size | customized design |
| Design | customized design,we also have simliar molds like this one |
| IC duration | 15seconds per button,about 80seconds in total .(Customer's sounds files) |
| Sticker | 157gsm art paper (also customer provided stiker file,AI format) |
| Testing | E/ROHS/EMC/EN71-1/2/3 |
| Speaker | 8Ohm 0.25W, Dia.29mm |
| Battery | AG10*3pcs |
| Function | hen pressing the stikcer's button down, it comes up with the sounds. |
| Application | Children talking book, baby sound book, play a sound book |
| Production time | 30-45days after the sample approved(the first 10-15days for booking materials ,the next 10-15days for production,the final 10-15days for ready for shipment ) |
| Payment term | T/T ,30% deposit + 70% balance money paid before delivery |

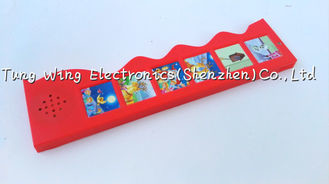

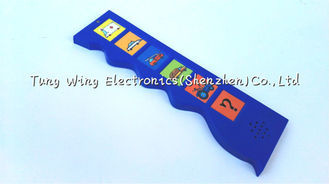

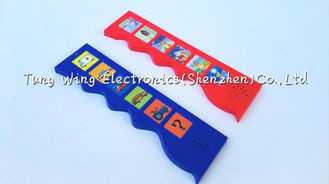

Picture show:

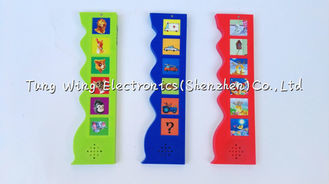

More detailed information about our exsiting molds for 6 button module
| 1.Item | 6 button module |
| 2.Material | ABS + art paper |
| 3.Specification | different size |
| 4.IC duration | 3~5seconds per button,20seconds in total.(this can be changed according to your sound files) |
| 5.Operating | Each button stands for one sound. |
| 6.Payment term | T/T, 30% deposit +70% balance money paid before the shipment |
| 7.Production time | 30-45days after the sample approved(the first 10-15days for booking materials ,the next 10-15days for production,the final 10-15days for ready for shipment ) |
| 8.Package | Customized package,according to your requirements. |
OEM & ODM SERVICES (Custom shape & Custom sound)
Tung Wing Electronics(Shenzhen)Co.,Ltd established in 1987,located in Shenzhen, China. Our Major products are all kinds of sound module, LED/fiber optic module,plastic electronic products, electronic toys and gifts etc.. We provide OEM/ODM service to every customer upon our powerful development capabilities, first-class service, strict product quality assurance and punctual delivery.In addition,we have scientific organizational company structure and management system.Professional mold team to fulfill the mold producton,and injection department to produce the plastic housing,and also the Bonding &SMD department,Slik screen department ,with 6 production line’s skilled workers to implement the assembly production works,finally the strict QC & QA testing stardards.
